TenCate Mirafi Geotextiles RSi-Series & H2Ri-Series

TenCate Mirafi RSi-Series High-Tenacity Multi-Layered Polypropylene Filter Fabric Geotextiles

TenCate Mirafi® RSi-Series woven geosynthetics are used for varying application needs including base course reinforcement and subgrade stabilization for road, runway and railway construction; embankment stabilization on soft foundations; reinforcement for mechanically stabilized earth (MSE) structures; liner support, voids bridging, reinforcement over soft hazardous pond closures and other environmental market applications.

TenCate Mirafi® RSi-Series woven geosynthetics have higher tensile modulus properties for strength reinforcement than any comparable stabilization product. Its unique double layer construction provides an excellent separation factor with superior filtration and drainage. Uniform openings provide consistent filtration and flow characteristics of a fine to coarse sand layer. The RSi-Series has superior soil and base course confinement capabilities resulting in greater load distribution. In terms of durability, the RSi-Series geotextiles have robust damage resistance for moderate to severe stress installations. Panels can be seamed in the factory or field, providing cross-roll direction strength to facilitate efficient installation. TenCate Mirafi® RSi-Series woven geosynthetics come in several roll sizes to fit project requirements.

Highlights

    • Modulus - Separation. Confinement. Water flow. Orange product identification
    • Reinforcement Strength - Higher tensile modulus properties than the leading stabilization products
    • Separation and Filtration - Unique double layer construction provides a wide range of pore sizes for an excellent separation factor, superior filtration and flow characteristics of a fine to coarse sand layer
    • Soil and Base Course Interaction - Excellent soil and base course confinement resulting in greater load distribution
    • Durability - Robust damage resistance for moderate to severe stress installations
    • Roll Sizes - Mirafi® RSi-Series geosynthetics come in several roll sizes to fit project requirements
    • Seams - Panels can be seamed in the factory or field, providing cross-roll direction strength to facilitate efficient installation
    • Reinforcement - The synergistic improvement of a total system’s strength created by the introduction of a reinforcing geosynthetic (that is good in tension) into a soil and/or aggregate system (that is good in compression but poor in tension)
    • Filtration - The equilibrium soil-to-geotextile system that allows for adequate movement of a liquid across the plane of the geotextile with limited soil loss over the service lifetime of the application
    • Separation - The placement of a flexible, porous geotextile between dissimilar materials so that the integrity and intended functions of both materials remain intact or are improved
    • Confinement - The ability of a geosynthetic to restrain lateral movement from a soil or aggregate through friction or mechanical interlock
    • base course reinforcement and subgrade stabilization of transportation, building site development and energy infrastructure projects such as roadways, railways, and airports
    • embankment stabilization on soft foundations
    • reinforcement for mechanically stabilized earth (MSE) structures
    • liner support, voids bridging, reinforcement over soft hazardous pond closures and other environmental market applications

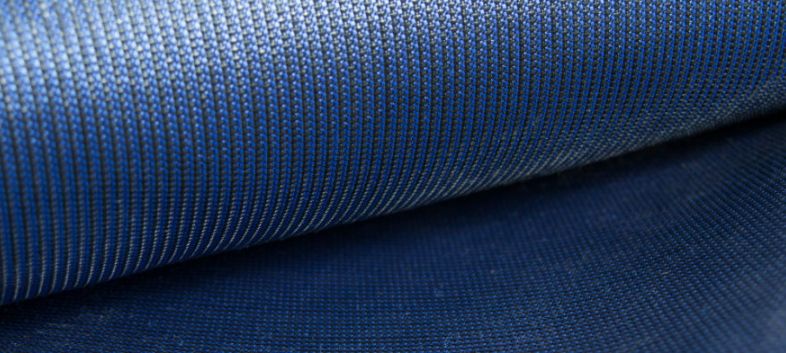

TenCate Mirafi H2Ri-Series High-Tenacity Polypropylene Wicking Filter Fabric Geotextiles

When superior performance, flexibility and versatility are necessary, TenCate Mirafi® H2Ri -Series makes the difference for varying application needs including: base course reinforcement and subgrade stabilization for road, runway and railway construction; frost heave/frost boils; embankment stabilization on soft foundations; reinforcement for mechanically stabilized earth (MSE) structures; liner support, voids bridging, reinforcement over soft hazardous pond closures and other environmental market applications.

TenCate Mirafi® H2Ri-Series Woven Geosynthetics function for separation, filtration, soil reinforcement, confinement, and drainage.

Highlights

    • Wicking Capability - Special hydrophilic and hygroscopic 4DGTM Fibers that provides wicking action through the plane of the geosynthetic
    • Reinforcement Strength - Higher tensile modulus properties than the leading stabilization products
    • Separation and Filtration - Unique double layer construction provides an excellent separation factor with superior filtration and drainage. Uniform openings provide consistent filtration and flow characteristics of a fine to coarse sand layer
    • Soil and Base Course Interaction - Excellent soil and base course confinement resulting in greater load distribution
    • Durability. Robust damage resistance for moderate to severe stress installations.
    • Roll Sizes - TenCate Mirafi® H2Ri-Series geosynthetics come in several roll sizes to fit project requirements
    • Seams - Panels can be seamed in the factory or field, providing cross-roll direction strength to facilitate efficient installation
    • Moisture Management - The ability to move a liquid through soil-geotextile system by capillary action, neither relying on gravity nor a positive hydraulic gradient
    • Reinforcement - The synergistic improvement of a total system's strength created by the introduction of a reinforcing geosynthetic (that is good in tension) into a soil and/or aggregate system (that is good in compression, but poor in tension)
    • Separation - The placement of a flexible, porous geotextile between dissimilar materials so that the integrity and intended functions of both materials remain intact or are improved
    • Drainage - The equilibrium soil-to-geotextile system that allows for adequate movement of a liquid in the plane of the geotextile over the service lifetime of the application
    • Confinement - The ability of a geosynthetic to restrain lateral movement from a soil or aggregate through friction or mechanical interlock
    • Filtration - The equilibrium soil-to-geotextile system that allows for adequate movement of a liquid across the plane of the geotextile with limited soil loss over the service lifetime of the application
    • Transporting water against gravity, reducing water accumulation due to ponding
    • Increased roadway life expectancy in flexible pavements via mechanical and hydraullic stabilization
    • Removing excess moisture from base/subgrade & subgrade soils
    • Mitigation of frost heave and frost boils
    • Mitigation of lateral edge cracking in expansive clays
    • Replacement of drainage fill in high water table areas
    • Additional working surfaces including unpaved roads, flexible pavements, working platforms, and airport runways
